PUSH BUTTON - ILLUMINATED RED BUTTON Exit Buttons & Break Glass Illuminated Push Button
Radiant Push button Switch is a satin finish with stainless steel face plate, suitable for a variety of doors. It is with simple & ultra-narrow design, refined and elegant.
Exit Push Button Control is suitable for electrical control circuit such as doors, gates, locks anti-theft alarm, industrial control equipment and so on. User Friendly, push for opening the door.
MODEL
RD04304: Push
Button - Illuminated Red - 115H*43.7W*30.5D
RD04305
: Push Button - Illuminated Red - 120H*76.2W*56D
|
SPECIFICATION
|
|
|
Model
|
RD04304/ RD04305
|
|
Material
|
Stainless steel brushed finish
|
|
Switch data
|
5A/250VAC , 6A/125VAC
|
|
Optional Functions
|
NO/NC/COM
|
|
Suitable for Door
|
All kinds of Doors
|
|
Operating temp
|
-10
～
+55
℃
(14-131F)
|
|
Operating Humidity
|
0-95% (Non- condensing)
|
|

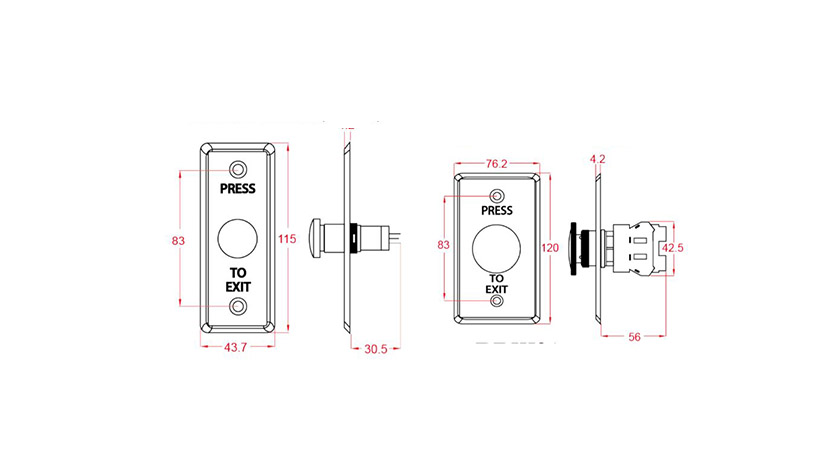

Dimensions
|
RD04304 - 115L*43.7W*30.5D |
|
Weight
|
0.2Kg
|
Download Technical Datasheet PUSH BUTTON - ILLUMINATED RED BUTTON
