Electric Strike - Double-swing glass door

RD245 Series Electric Strike for Double-swing glass door Electric Strikes & Bolts Electric Strike - General Type

Radiant electric strike is the heavy-duty-type ANSI standard fail-safe electric strike lock with feedback signal output. It works with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all dual mode double-swing glass door.

SPECIFICATION
Model	RD245 : Fail secure with Lock sensor, lock cylinder
Lock Status Sensors	Dry contact, NO/NC/COM
Rated Operating Voltage	DC 12V/ 24V DC/AC (Selectable)
Current draw	300mA/ 12VDC, 150mA/ 24VDC
Optional Functions	Lock Status Sensors
Face place material	Stainless Steel
Ambient temperature in °C	-10°C - +55°C
Suitable for	Dual mode Double -swing glass door

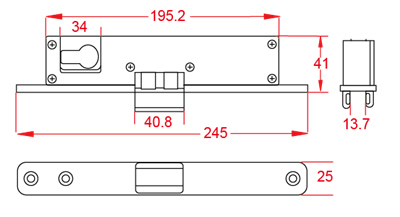

Strike Plate Dimensions (L x W x D)	245Lx25Wx41H(mm)
