METAL PUSH BUTTON STAINLESS FACE PLATE Exit Buttons & Break Glass Metal Push Button
Radiant Push button Switch is a satin finish stainless steel access switch button, suitable for a variety of door frame. It is with simple & ultra-narrow design, refined and elegant.
Exit Push Button Control is suitable for electrical control circuit such as doors, gates, locks anti-theft alarm, industrial control equipment and so on. User Friendly, push for opening the door.
MODEL:
RD04308: Push button with narrow faceplate
RD04309: Push button with wide faceplate
RD04310: Push button with wide faceplate
|
SPECIFICATION
|
|
|
Model
|
RD04308/ RD4309/RD04310
|
|
Material
|
SUS304 Stainless steel Panel, Steel Button
|
|
Switch data
|
5A/125VAC , 3A/250VAC
|
|
Optional Functions
|
NO/NC/COM Output
|
|
Operating temperature
|
-10
～
+55
℃
(14-131F)
|
|
Suitable for Door
|
hollow door frame and electrical box use
|
|
Operating Humidity
|
0-95% (Non- condensing)
|
|

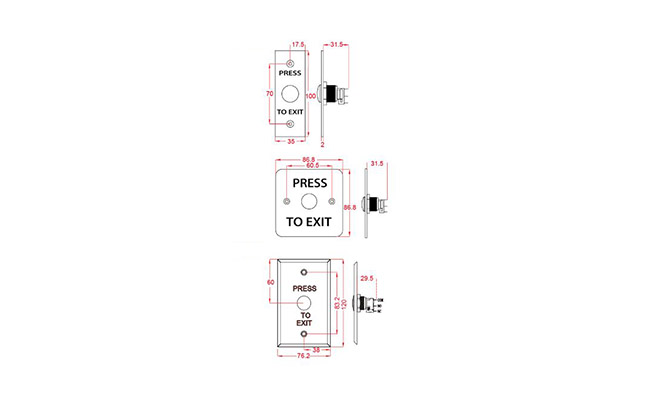

Dimensions
|
PB21 - 100L*35W*31.5D |
Download Technical Datasheet METAL PUSH BUTTON STAINLESS FACE PLATE
